uWave Hydroacoustic Modem
The world's smallest hydroacoustic modem with a communication range of up to 1000 meters
Home / Products / Data transmission /
Data transmission
uWave

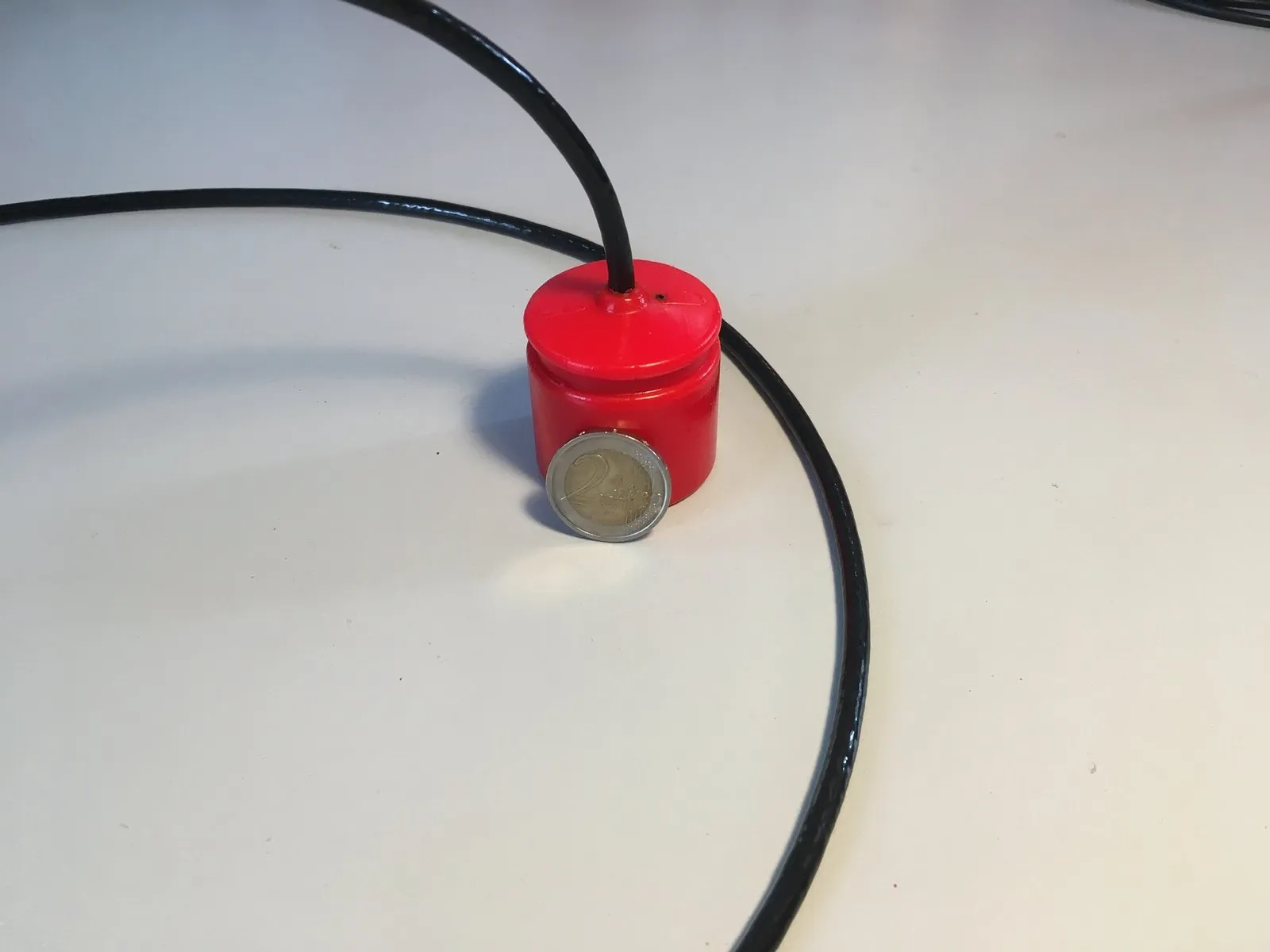

The key advantages of the uWave modem are its small size and weight – just 41 by 45 mm with a dry weight of 0.16 kg – low power consumption (Rx/Tx) of 0.33/6 W, and ease of use with no setup or calibration. Immediately after power-on, the user gets a transparent channel that requires no knowledge of the modem's control protocol.
Ideal for controlling autonomous underwater vehicles and for data transmission in user applications.
- Maximum ease of data transmission in open channel mode – simply connect the modem to a serial port with no additional settings required
- 16 preset messages available, 9 of them code commands for user applications
- Batch mode data transmission with guaranteed delivery and its notifications, plus logical addressing supporting up to 254 subscribers
- Simultaneous measurement of immersion depth, temperature, power supply voltage of local and remote modems, and distance to them
- Two switchable operating modes: transparent channel mode, forwarding all incoming data to the hydroacoustic channel, and command mode for sending short requests to other devices and 9 user commands;
- Data transmission rate of 78 bit/s;
- Open interface protocol;
- Signal propagation time measurement;
- Built-in depth/temperature sensor with depth measurement up to 300 m;
- Patented monoblock design;
- Packet mode with guaranteed delivery (ALO – At-least-once);
- Code division of subscribers – up to 20, logical addressing – up to 254 (implemented at the protocol level);
